1000 Series Control Valves for Severe Services

Product Description

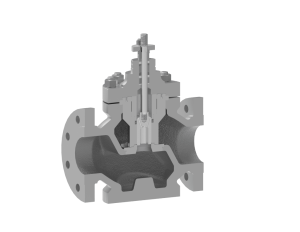

The Severn 1000 Series Severe Service Control Valve benefits from more than five decades of experience in providing cost effective and easily maintained valves for applications found through the process, power, oil and gas industries. The simple design provides rugged reliability and is based upon a cast top entry style body in a range of material options. The 1000 Series Valve is available with a screwed seat though to advanced multi stage trim options.

Engineering data

Design features

• Smooth profile cast globe body construction
• Wide range of trim options available
• Robust parts for trouble free service and low cost of ownership
• Valve body proportioned to stand high pipe stresses without distortion
• Inherently characterised trims available in linear, equal percentage or semi-throttle
• Both balanced and unbalanced trim designs available with soft seat insert option

Benefits

• Top-entry servicing with immediate access to plug and seat
• Reduced inspection and maintenance costs
• Trims compact and easy to install
• Excellent flow capacity and control rangeability
• Reduces potential erosion and noise problems
• Reliable leakage performance, bubble tight shut off available
• High interchangeability between sizes and other products
• Low actuating forces required with balanced trim styles
